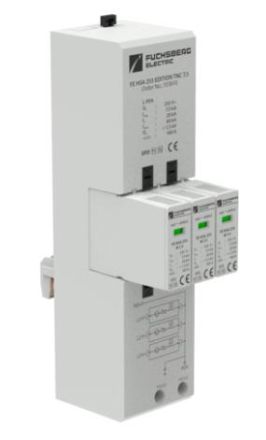

Fuchsberg Electric 553610 T1+T2 SS 7.5 FE HSA 255 EDITION TNC 7.5 combined arrester

In stock

SKU: 953668

Price on request

€391.76

€0

Overview

Combined lightning current arrester type 1+2 for mounting on 40 mm busbar systems is installed in 3-phase network systems according to lightning protection classes III and IV by simply snapping it onto the busbar system.

Nominal voltage	U_N	230 V AC / 400 V AC
Maximum continuous voltage	U_c	255 V AC
Lightning impulse current (10/350 µs)	I_imp	7.5 kA
Nominal discharge current (8/20 μs)	I_n	20 kA
Maximum discharge current (8/20 μs)	I_max	60 kA
Protection level	U_p	<, 1.5 kV
Short-circuit strength	I_SCCR	25 kA
Maximum back-up fuse		160 A gL/gG
TOV behavior LN	U_T	335 V (5 s / strength)
TOV behavior LN	U_T	440 V (120 min / strength)
Specific energy	W/R	14 kJ/Ω
Charge	Q	3.75 As
Response time	t_A	<, 100 ns
Connection cross-section rigid		1 mm² … 35 mm²
Connection cross-section flexible		1 mm² … 25 mm²
Defect indicator		with
Housing material		Thermoplastic: Flammability class: UL 94 V-0
Protection class		IP 20
Permissible humidity	RH	5% ... 95%
Operating temperature		-40 °C … +80 °C
Mounting on		40 mm busbar systems

Characteristics

HABT1+T2 SS 7,5 FE HSA 255 EDITION TNC 7,5

Manufacturer

HAN553610

GTIN4260574280949
