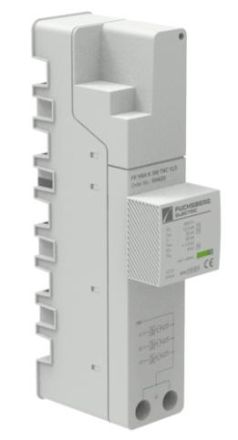

Fuchsberg Electric 554620 T1+T2 SS 12.5 FE HSA K 300 TNC 12.5 combined arrester

In stock

SKU: 953669

Price on request

€543.12

€0

Overview

Combined lightning current arrester type 1+2+3 for mounting on 40 mm busbar systems is installed in 3-phase network systems according to lightning protection classes III and IV by simply snapping it onto the busbar system.

Nominal voltage	U_N	230 V AC / 400 V AC
Maximum continuous voltage	U_C	300 V AC
Lightning impulse current (10/350 µs)	I_imp	12.5 kA
Nominal discharge current (8/20 µs)	I_n	20 kA
Maximum discharge current (8/20 µs)	I_max	50 kA
Open circuit voltage of the hybrid generator (1.2/50 µs)	U_OC	6 kV
Protection level	U_p	<, 1.5 kV
Short circuit strength	I_SCCR	25 kA
Maximum back-up fuse		315 A gG
TOV behavior	U_T	442 V (120 min / strength)
Specific energy	W/R	39 kJ/Ω
Charge	Q	6.25 As
Response time	t_A	100 ns
Connection cross-section, rigid		max. 35 mm²
Connection cross-section, flexible		max. 25 mm²
Defect indicator		with
tightening torque	M_max	4.5 Nm
Housing material		Thermoplastic: Flammability class UL 94 V-0
Protection class		IP 20
Operating temperature		-40 °C … +85 °C
Permissible humidity	RH	5% ... 95%
Mounting on		40 mm Busbar systems

Characteristics

HABT1+T2 SS 12,5 FE HSA K 300 TNC 12,5

Manufacturer

HAN554620

GTIN4260574281502
