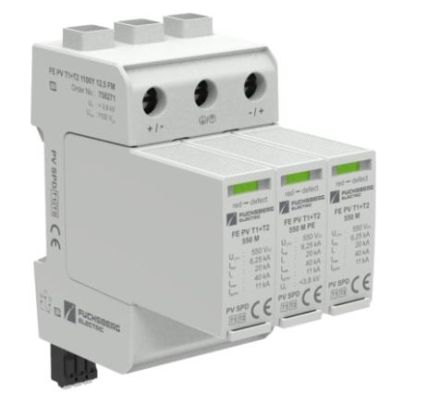

Fuchsberg Electric 758271 FE PV T1+T2 1100Y FM PV arrester

Fuchsberg Electric 758271 FE PV T1+T2 1100Y FM PV arrester

In stock

SKU: 953662

Price on request

€258.54

€0

Into a basketIn the basketGo

Overview

FE PV T1+T2 1100Y FM PV arrester

Maximum continuous operating voltage	U_CPV	1100 V DC
Lightning impulse current (10/350 µs)	I_imp	6.25 kA
Total discharge capacity (10/350 µs)	I_total	12.5 kA
Nominal discharge current (8/20 µs)	I_n	20 kA
Total discharge capacity (8/20 µs)	I_total	50 kA
Protection level	U_p	<, 3.8 kV
Short-circuit strength	I_SCPV	11 kA
Response time	t_A	25 ns
Connection cross-section rigid		2 mm² ... 35 mm²
Connection cross-section flexible		4 mm² ... 25 mm²
Defect indicator		with
remote signaling contact		potential-free changeover contact
Operating voltage / operating current AC / DC (FM)		250 V/1 A AC, 24 V/0.5 A DC
Connection cross-section remote signaling		1.5 mm²
Protection class		IP 20
Operating temperature		-40 °C … +85 °C
Permissible air humidity	RH	5% ... 95%
Mounting on		35 mm DIN rail

Characteristics

HABFE PV T1+T2 1100Y FM

Manufacturer

HAN758271

GTIN2000003361496
