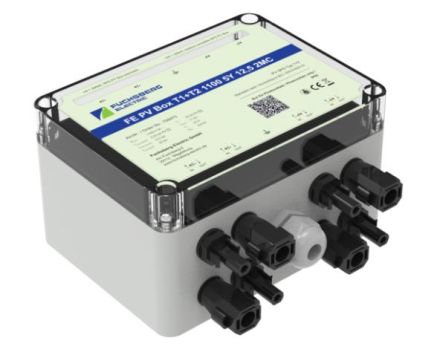

Fuchsberg Electric 758473 T1+T2 2MC FE PV Box 1100 5Y 12.5 2MC generator connection box

In stock

SKU: 953671

Price on request

€309.28

€0

Overview

Connection box for lightning and surge protection of photovoltaic systems. The compact design means that the PV box is very space-saving and easy to connect thanks to the MC 4 connectors. Type 1+2, network configuration: Y-connection, Iimp / pole = 6.25 kA, Itotal = 12.5 kA, protection paths: (+)-(PE), (-)-(PE), (+)-(-), (+/-)-(PE)

Maximum continuous operating voltage	U_CPV	1100 V DC
Nominal load current	I_L	35 A
Lightning impulse current (10/350 µs)	I_imp	6.25 kA
Total discharge capacity (10/350 µs)	I_total	12.5 kA
Nominal discharge current (8/20 µs)	I_n	20 kA
Total discharge capacity (8/20 µs)	I_total	50 kA
Maximum discharge current (8/20 µs)	I_max	40 kA
Protection level	U_p	<, 4.4 kV
Short-circuit strength	I_SCPV	11 kA
Response time	t_A	25 ns
Type of Cable feed		Cable gland / MC 4 connector
Outer diameter of the conductor		4 mm … 8 mm
Conductor cross-section - earthing [cable gland]		0.2 mm² ... 16 mm²
Fault indicator		with
Altitude above sea level		4000 m
Number of strings per MPPT		2 strings
Protection class		IP 67
Operating temperature		-40 °C … +85 °C
Permissible humidity	RH	5% ... 95%
Installation		Surface-mounted, indoor / outdoor

Characteristics

HABT1+T2 2MC FE PV Box 1100 5Y 12,5 2MC

Manufacturer

HAN758473

GTIN4260574281595
