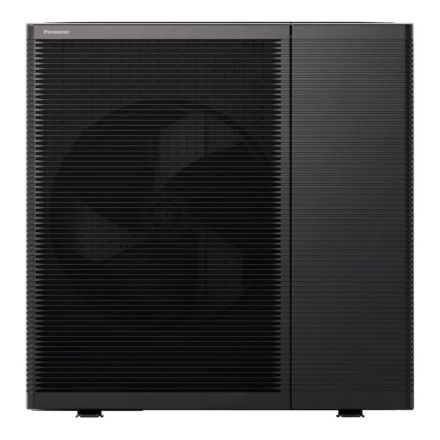

Panasonic WH-WDG09LE5 heat pump monoblock LT hydraulic split, L-generation, R290

Panasonic WH-WDG09LE5 heat pump monoblock LT hydraulic split, L-generation, R290

In stock

SKU: 1061504

HAB:LT hydraulic split, L-generation, R290

Manufacturer:PANASONIC

HAN:WH-WDG09LE5

GTIN:2000004422264

Price on request

€3,927.74

€0

Into a basketIn the basketGo

Overview

Panasonic WH-WDG09LE5 Heat Pump Monoblock LT Hydraulic Split, L-Generation, R290

Aquarea heat pumps can help you save up to 80% energy. Aquarea uses the thermal energy of the outside air as a renewable and free energy source to heat or cool buildings and produce hot water for sanitary purposes.Pioneering low-energy system for heating, cooling and domestic hot water preparation that achieves high performance. even at low outside temperatures. The new Aquarea L-Generation is specifically designed for use with the industry-leading natural refrigerant R290.It is an ideal solution for the renovation of existing buildings where high flow water temperatures. are required or for innovative pioneers who are conscious. Choose a state-of-the-art heat pump with natural refrigerant. --- ATTENTION: An indoor unit is required for operation!!!

Technical data:
Sound power level heating [dB(A)]: 54
Dimensions H x W x D (mm): 996 x 980 x 430
Net weight (kg): 97
Pre-filled refrigerant quantity (R290) / CO2 equivalent (kg / t): 1/0.003
Water pipe connections (on IG / AG) (inches): 1/1
Pipe length (standard / max.) (m): 5 / 30
Height difference IG / AG (max.) (m): 10

Outside temperature limits (min./max.)
Heating (°C): -25 / +35
Cooling (°C): +10/ +43

Water outlet temperature (min. / max.)
Heating (°C): 20 – 75
Cooling (°C): 5 – 20

Electrical data
Power of the electric heating element (kW): 3.00
Recommended fuse (A): 25/16
Recommended cable cross-section (min.) for mains connection 1 / 2 (mm²): 3x2.5 / 3x1.5
