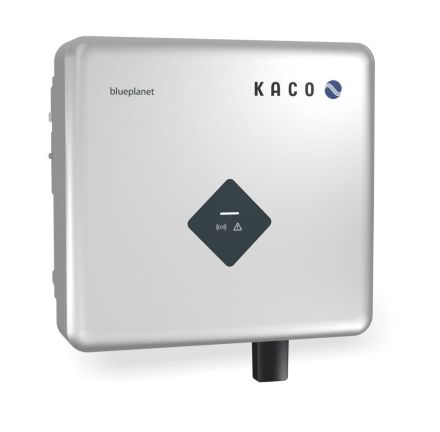

Description The NX1 series consists of single-phase PV inverters for small private systems. With two independent MPP trackers and a wide input voltage range, the inverters can be designed flexibly. The low weight and small dimensions make installation particularly easy. The devices are available in power classes from 3.0 to 5.0 kW. Advantages: Quiet operation with 25dB level / Low weight (11 kg) for easy installation / Fast WiFi setup with app / Smart monitoring with user-friendly app Features Protection class (IP) IP65 Width 355 mm Weight 13 Weight unit KG Weight reference quantity 1 Height 376 mm Depth 145 mm Max. DC input power 7500 W Weight 11 kg Display without Type of supply voltage DC AC output nominal power 5000 W Euro efficiency 97 % MPP voltage 220 - 480 V Grid monitoring 1-phase Max. input current at DC 12 A Number of independent MPPT inputs 2 Max. input voltage DC 580 V Integrated DC switch yes DC connection connector AC connection connector
