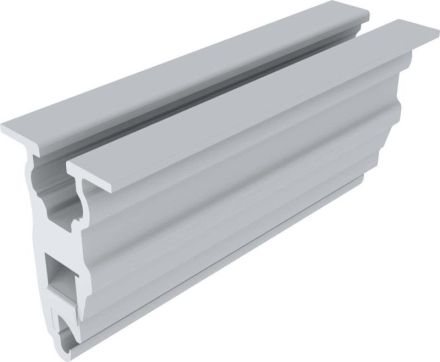

Schletter Solar seam clamp 504 AL KK 112001-010 Particularly suitable for double standing seam roofs made of titanium zinc sheet. Possible dimensions of the hem seam h = 11-13 mm, b1 = 4-6 mm, b2 = max. 3 mm. The seam clamp 504 was developed together with Rheinzink for use on double standing seam roofs made of titanium zinc sheet and approved by Rheinzink. Profiles mounted on the standing seam clamps must not exceed a length of approx. 3 m without thermal separation. Manufacturer: Schletter Solar Description: Seam clamp 504 AL KK for standing seam roofs Type: 112001-010 Design: Clamp Material: Aluminium Width: 35 mm Height: 154 mm Depth: 111 mm
