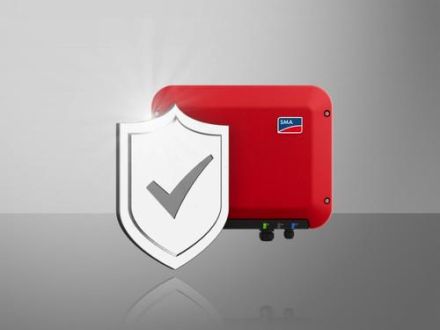

SMA SB 2.0-1 VL 40 inverter

In stock

SKU: 917504

Price on request

€609.10

€0

Overview

Solar inverter for single-phase grid feed-in, Pac,r/Sac, max. 2.0 kW / 2.0 kVA, transformerless, SMA Smart Connected, SMA ShadeFix, easy installation and monitoring via integrated web server with Smart Inverter Screen and installation assistant or using SMA 360° APP, WLAN and Ethernet, SMA Modbus and SunSpec protocol, DC connection SUNCLIX, DC disconnect switch, documentation in all European languages.

Ingress protection (IP)	IP65
Width	460.00 mm
Weight	12
AC output power rating	2000.00 W
Max. DC input power	4000.00 W
MPP voltage	160.00 - 480.00 V
Weight	9.20 kg
Display	without
Ethernet	yes
Euro efficiency	96.40 %
Suitable for outdoor installation	yes
Number of independent MPPT inputs	1.00
With data logger	yes
Height	357.00 mm
Wireless	yes
Depth	122.00 mm
Grid monitoring	1-phase
Max. input current at DC	10.00 A
Max. input voltage DC	600.00 V
Max. input current DC per MPP tracker	10.00 A
Max. Efficiency	97.20 %
Integrated DC switch	yes
String connections per MPPT input	1.00
DC connection	Connector
AC connection	Connector
