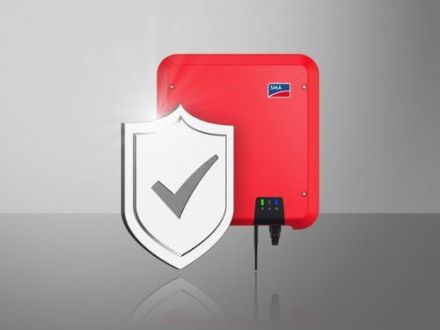

SMA SB 6.0-1 AV 41 inverter 1-ph

In stock

SKU: 917499

Price on request

€2,113.50

€0

Overview

Solar inverter for single-phase grid feed-in, Pac,r/Sac, max. 6.0 kW/ 6.0 kVA, transformerless, SMA Smart Connected, SMA ShadeFix, integrated web server with Smart Inverter Screen and installation assistant, integrated RS-485 communication interface, WLAN and Ethernet, SMA Modbus and SunSpec protocol, DC connection SUNCLIX, DC disconnect switch, 2 independent MPP trackers, parallel connection of the MPP trackers, documentation in all European languages.

Protection class (IP)	IP65
Width	435.00 mm
Weight	20.5
Weight unit	KG
AC output power rating	5000.00 W
MPP voltage	175.00 - 500.00 V
Weight	16.00 kg
Display	without
Euro efficiency	96.50 %
Suitable for Outdoor installation	yes
With data logger	yes
Height	470.00 mm
Depth	176.00 mm
Max. DC input power	6300.00 W
Grid monitoring	1-phase
Max. input current at DC	30.00 A
Number of independent MPPT inputs	2.00
Max. input voltage DC	600.00 V
Max. DC input current per MPP tracker	15.00 A
Max. efficiency	97.00 %
Integrated DC switch	yes
String connections per MPPT input	2.00
