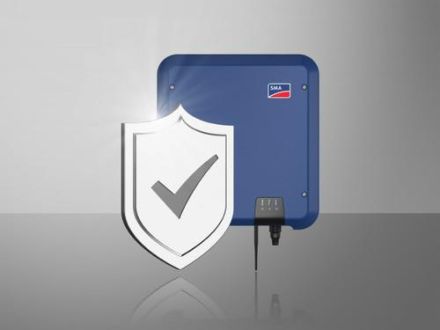

Solar inverter for three-phase grid feed-in, Pac,r/Sac, max. 4.0 kW/ 4.0 kVA, transformerless, SMA Smart Connected, SMA ShadeFix, integrated web server with Smart Inverter Screen and installation assistant, integrated RS-485 communication interface, WLAN and Ethernet, SMA Modbus and SunSpec protocol, DC connection SUNCLIX, DC disconnect switch, 2 independent MPP trackers, parallel connection of the MPP trackers, documentation in all European languages. Phases 1/3 = 3, max. input current (Amp) = 2 x 12 solar inverters for three-phase grid feed-in, Pac,r/Sac, max. 4.0 kW/ 4.0 kVA, transformerless, SMA Smart Connected, SMA ShadeFix, integrated web server with Smart Inverter Screen and installation assistant, integrated RS-485 communication interface, WLAN and Ethernet, SMA Modbus and SunSpec protocol, DC connection SUNCLIX, DC disconnect switch, 2 independent MPP trackers, parallel connection of the MPP trackers, documentation in all European languages.
| Protection class (IP) | IP65 |
| Width | 435 mm |
| Weight | 20.5 |
| Height | 470 mm |
| Depth | 176 mm |
| AC output power rating | 4000 W |
| Max. DC input power | 8000 W |
| MPP voltage | 175 - 800 V |
| Weight | 17 kg |
| Euro efficiency | 97.10 % |
| Suitable for outdoor installation | yes |
| Grid monitoring | 3-phase |
| Number of independent MPPT inputs | 2 |
| With data logger | yes |
| Max. input voltage DC | 850.00 V |
| Max. Input current DC per MPP tracker | 12.00 A |
| Max. efficiency | 98.20 % |
| Integrated DC switch | yes |
| String connections per MPPT input | 1.00 |
