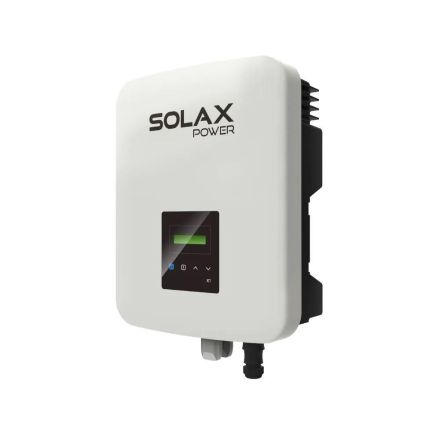

Solax X1-3.0-TD BOOST G3.3, 1 Ph. String inverter, dual MPPT (3000W)
The ideal inverter for small solar systems!
The X1 BOOST is the optimal solar inverter for private households. This single-phase inverter X1-3.0-TD BOOST G3.3 has a wide MPPT voltage range for greater energy yield and has a maximum input voltage of 600V with a maximum efficiency of 97.8%. In addition, the inverter is suitable for indoor and outdoor installation and does not require an internal fan (absolutely silent!).
High efficiency: maximum efficiency of 97.8%
Dual MPPT: specially designed for two module orientations (e.g. east/west)
Installation: extremely easy installation and maintenance
Particularly quiet: without active fans
Wide voltage range: maximum DC input voltage 600V
Protection class IP65: suitable for indoor and outdoor use
The inverter meets all the necessary standards and norms for operation in Germany, in particular VDE-AR-4105 with integrated ENS protection circuit.
Technical data:
AC power: max. 3.0 kW
Input voltage: 600 volts
Min. MPP voltage: 70 volts
Max. MPP voltage: 580 volts
Generator output: 3.25 kW
Nominal AC output: 3.0 kVA (max. 3000 watts)
Maximum AC output: 3.0 kVA
Number of MPP trackers: 2
Number of strings: 2
Feed-in phases: 1
Interface: RS485, DRM, (LAN, W-LAN, GPRS optionally expandable)
Length: 430 mm
Width: 341.5 mm
Height: 143 mm
Weight: 13.5 kg
Scope of delivery:
1x Solax X1-3.0-TD BOOST G3.3
1x operating instructions
1x assembly instructions
Article Unit Pcs
Dimensions in mm
Length 430
Width 341.5
Height 143
EAN 4062852667080
Design other
Color white
Weight in kg 13.50
Delivery time 1 - 3 working days**
WEEE Reg. No. DE 47677397
Max. AC power 3.0 kW
Min. Mpp input voltage 70 V
Max. Mpp input voltage 580 V
Number of Mpp trackers 2
Feed-in phases 1
Communication (connections) RS485, DRM, (LAN, W-LAN, GPRS optional)
Protection class IP65
