LUNATONE 86458676-DE DALI blind actuator DE | 1x

LUNATONE 86458676-DE DALI blind actuator DE | 1x

Основной: Pre-order only

SKU: 20007975

Compatible with Google Assistant:N/A

Thread:No

Other bus systems:-

Operation via Bluetooth:No

EAN:9010342011245

All specifications

Price on request

€140.72

€0

Under the orderIn the basketGo

Overview

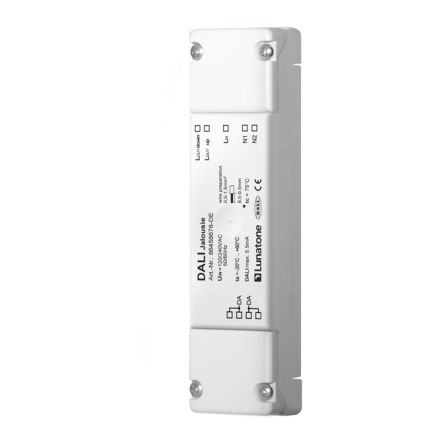

![CDATA[The DALI blind module is used to control 230V blind motors via DALI. 4 processes for opening/closing the blind and for adjusting the slat tilt angle can be programmed. Versions for ceiling installation and top hat rail installation are available. Technical data: Color: gray Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Connecting wire cross-section: max. 2.5mm² Installation: top hat rail/ceiling installation (depending on version) Function: Device type: DALI switching actuator configurable via DALI cockpit: yes Electrical data: Supply from: DALI bus type. Current consumption: 5.5mA (DALI) Control input: DALI Input: 230V AC Output: 230V AC (Up or Down, interlocked) Relay contact Switching voltage: 250V AC Max. rated load and rated current: 1000VA / 4A Switching cycles at rated load - resistive: >, 10^5 Max. switching frequency: 0.2Hz Dimensions: Length: 98mm (HS) / 120mm (DE) Width: 17.5mm (HS) / 30mm (DE) Height: 56mm (HS) / 21mm (DE)]]>

Characteristics

Compatible with Google AssistantN/A

ThreadNo

Other bus systems-

Operation via BluetoothNo

EAN9010342011245

Siemens LOGO!No

Hager KNXeasyNo

KNX-SecureNo

MbusNo

Modbus TCPNo

Samsung SmartThingsN/A

Size of connection terminal in mm21.50

Wi-FiNo

ZigbeeNo

Fan coilNo

LouvreYes

Nominal voltage outputs230 V AC

SwitchingN/A

With NetatmoNo

Amazon AlexaN/A

BAB-TecNo

Gira OneNo

HeatingNo

JUNG HOMENo

KNX-RFNo

KNX-TPNo

MatterNo

ModbusNo

On-site/manual operationNo

ShellyNo

Theben LUXORlivingNo

Wiser HomeNo

Different phases can be connectedN/A

Division units-

Manufacturer typeDALI blinds-DE

Transmission typeCable

Apple HomeKitN/A

CasambiNo

ENOceanNo

KNX USB interfaceNo

Modbus RTUNo

DALIYes

Classblind actuators

Binary inputs integratedno

DimmingNo

Free@homeNo

HAN86458676-DE

ManufacturerLUNATONE

GTIN9010342011245

Number of outputs1

Mounting typeceiling-mounted

LUNATONE 86458676-DE DALI blind actuator DE | 1x
