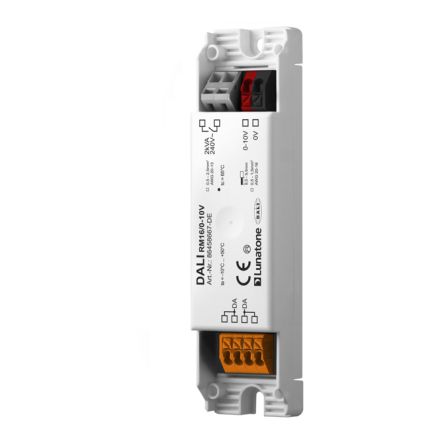

![CDATA[The DALI RM16/0-10V interface enables the control and switching of lighting systems with 0-10V or 1-10V control input as well as PWM input for electronic ballasts. It combines DALI 0-10V/PWM with a switching relay for power supply. With linear and logarithmic control characteristic, suitable for up to 5 consumers with 1mA control current each. Especially for high inrush current peaks of up to 160A. The supply is via DALI, no additional supply required. Addressable and galvanically isolated. Technical data: Supply from DALI bus, current consumption 2.5 mA, outputs for DALI, 0-10V PWM and relay contact. Switching voltage 250Vac/400Vac, maximum rated load 4000VA / 16A, maximum inrush current peaks 160A. Protection class IP40, suitable for cross sections of 0.5 - 1.5 mm². Housing: ceiling mount, dimensions 120.20 mm x 30.16 mm x 21.60 mm.]]>
