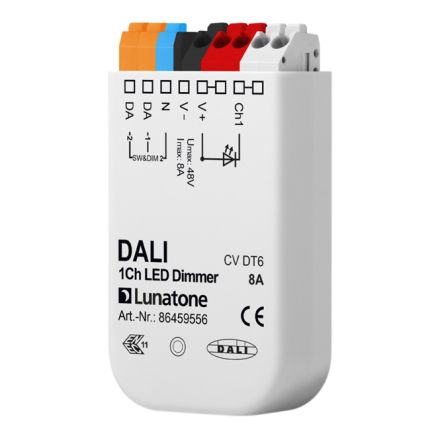

![CDATA[DALI LED dimmer (CV) with one channel, for installation in boxes/lights. Output can be controlled via DALI or SwitchDim2. Input voltage from 12V to 48V DC, max. connection current 8A, PWM output (16Bit). Product features: - 1 channel LED dimmer - for controlling constant voltage LED modules - dimming range from 0.1-100% - switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) - configuration via PC software DALI cockpit and DALI USB interface Technical data: Input voltage: 12-48VDC Max. connection current: 8A Control input: DALI DT6 / SwitchDim2 (mains voltage) Number of DALI addresses: 1 Max. cable cross-section: 1.5 mm² Variant: box / luminaire installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions (LxWxH): 59 x 33 x 15 mm]]>
