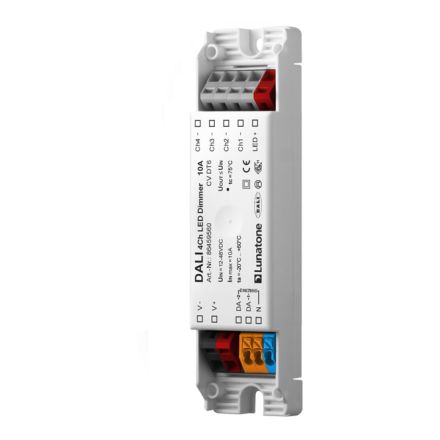

![CDATA[DALI LED dimmer (CV) for ceiling installation with 4 separately controllable channels. Each channel has its own DALI address. Supports operating modes: Colour&Dim for RGB and RGBW lights and SwitchDim2 for control via 2 button inputs without DALI. Input voltage: 12-48V DC, max. connection current: 16A, 4 PWM outputs (16 bit). Dimming range: 0.1-100%, switchable PWM frequency. Configuration via PC software DALI Cockpit and DALI USB interface. Technical data: Input voltage: 12-48VDC, Max. connection current: 16A, Control input: DALI DT6 / SwitchDim2, Max. DALI addresses: DT6 = 4 / Colour&Dim = 2, Max. cable cross-section: 2.5 mm² / DALI&SwitchDim 1.5 mm². Ceiling-mounted version, ambient temperature: -20 to +60°C, protection class: IP20, dimensions (LxWxH): 120 x 30 x 22 mm.]]>
