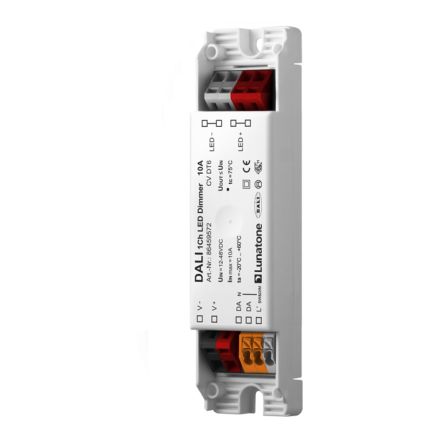

![CDATA[DALI LED dimmer (CV) with one channel, for ceiling installation. Output can be controlled via DALI or Sw&Dim. Input voltage from 12V to 48V DC, max. connection current 10A, PWM output (16Bit). Product features: - 1 channel LED dimmer - for controlling constant voltage LED modules - dimming range from 0.1-100% - switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) - configuration via PC software DALI cockpit and DALI USB interface Technical data: Input voltage: 12-48VDC Max. connection current: 10A Control input: DALI DT6 / Sw&Dim (mains voltage) Number of DALI addresses: 1 Max. cable cross-section: 2.5 mm², DALI/Sw&Dim: 1.5 mm² Variant: ceiling installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions (LxWxH): 120 x 30 x 22 mm]]>
