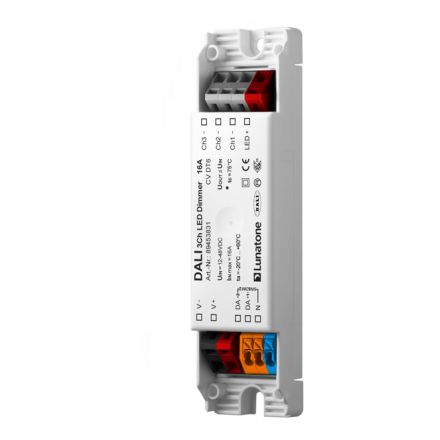

![CDATA[DALI LED dimmer (CV) with 3 separately controllable channels, for ceiling installation. 1 DALI address per channel. Alternative operating modes to DT6 control: Colour&Dim (RGB lights) and SwitchDim2 (control option via 2 button inputs without DALI). Input voltage from 12V - 48V DC, max. connection current 16A, 3 PWM outputs (16 bit). Product features: -3 channel LED dimmer -Control of constant voltage LED modules - Dimming range from 0.1-100% -The max. connection current can be distributed as desired across the channels -Switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) -Configuration via PC software DALI cockpit and DALI USB interface Technical data: Input voltage: 12-48VDC Max. connection current: 16A Control input: DALI DT6/SwitchDim2 (mains voltage) Number of DALI addresses: DT6=3/Colour&Dim=2 Max. cable cross-section: 2.5 mm²/DALI&SwitchDim 1.5 mm² Variant: Ceiling installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions: 120x30x22mm]]>
