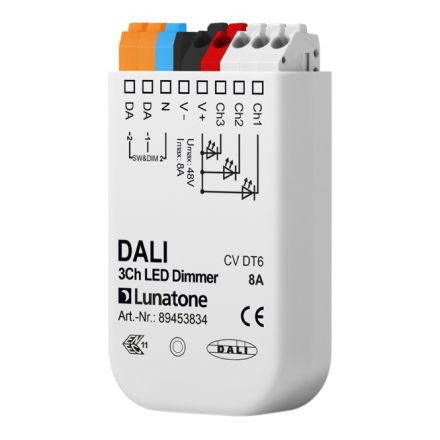

![CDATA[DALI LED dimmer (CV) with 3 separately controllable channels, for installation in boxes/lights. Each channel has its own DALI address. Alternative operating modes to DT6 control: Colour&Dim (controlling RGB lights) and SwitchDim2 (control option via 2 button inputs without DALI). Input voltage: 12V to 48V DC, max. connection current 8A, 3 PWM outputs (16 bit). Product features: -3 channel LED dimmer -for controlling constant voltage LED modules -dimming range from 0.1-100% -the max. connection current can be distributed as desired across the channels -switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) -configuration via PC software DALI cockpit and DALI USB interface Technical data: Input voltage: 12-48VDC Max. connection current: 8A Control input: DALI DT6/SwitchDim2 (mains voltage) Number of DALI addresses: DT6=3/Colour&Dim=2 Max. cable cross-section: 1.5mm² Variant: box/luminaire installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions (LxWxH): 59x33x15mm]]>
