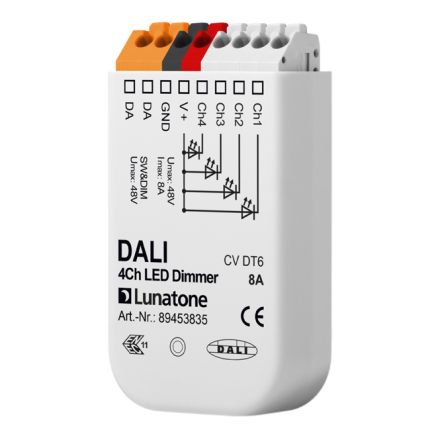

![CDATA[DALI LED dimmer (CV) with 4 separately controllable channels, for installation in boxes/lights. Each channel has its own DALI address. As an alternative to the DT6 control, the device supports Colour&Dim (for controlling RGB and RGBW lights). Input voltage from 12V to 48V DC, max. connection current of 8A, 4 PWM outputs (16 bit). Product features: - 4-channel LED dimmer - for controlling constant voltage LED modules - each channel has a DALI address - dimming range from 0.1-100% - the max. connection current can be distributed to channels as desired - switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) - configuration via PC software DALI cockpit and DALI USB interface Technical data: Input voltage: 12-48VDC Max. connection current: 8A Control input: DALI DT6 Number of DALI addresses: DT6 = 4 / Colour&Dim = 2 Max. cable cross-section: 1.5 mm² Variant: box/luminaire installation Ambient temperature: -20 to 60°C Protection class: IP20 Dimensions (LxWxH): 59 x 33 x 15 mm]]>
