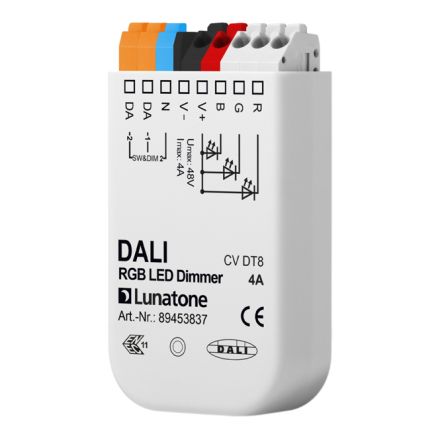

![CDATA[DALI LED dimmer (CV) with 3 output channels for controlling RGB lights via a DALI address (DT8). As an alternative to DT8 control, the device supports the operating modes: Colour&Dim and SwitchDim2 (control option via 2 button inputs without DALI). Input voltage from 12V to 48V DC, max. connection current up to 4A, 3 PWM outputs (16 bit). Product features: - RGB color control via a DALI address - for controlling constant voltage LED modules - dimming range from 0.1-100% - switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) - configuration via PC software DALI Cockpit and DALI USB interface Technical data: Input voltage: 12-48VDC Max. connection current: 4A Control input: DALI DT8 / SwitchDim2 (mains voltage) Number of DALI addresses: DT8: 1, Colour&Dim: 2 Max. cable cross-section: 1.5 mm² Variant: box / luminaire installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions (LxWxH): 59 x 33 x 15 mm]]>
