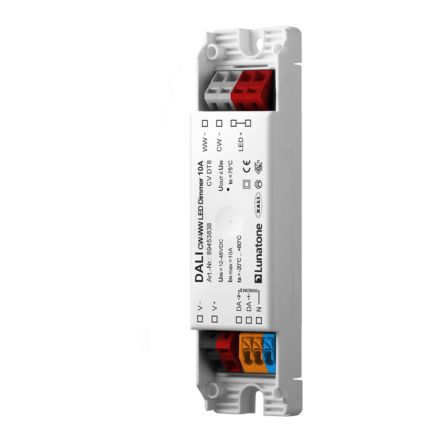

![CDATA[DALI LED dimmer (CV) with 2 output channels, for controlling TW-capable lights via a DALI address (DT8). As an alternative to DT8 control, the device supports: Balance&Dim, Dim2Warm and SwitchDim2 (control option via 2 button inputs without DALI). Input voltage from 12V to 48V DC, max. connection current up to 16A, 2 PWM outputs (16 bit). Product features: - independent control of brightness and color temperature via a DALI address - for controlling constant voltage LED modules - dimming range from 0.1-100% - switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) - configuration via PC software DALI Cockpit and DALI USB interface Technical data: Input voltage: 12-48VDC Max. connection current: 16A Control input: DALI DT8 / SwitchDim2 Number of DALI addresses: DT8, Dim2Warm:1 / Balance&Dim: 2 Max. cable cross-section: 1.5 mm², supply (V+, V-): 2.5 mm² Variant: ceiling installation Ambient temperature: -20 to 60°C Protection class: IP20 Dimensions (LxWxH): 120 x 30 x 22 mm]]>
