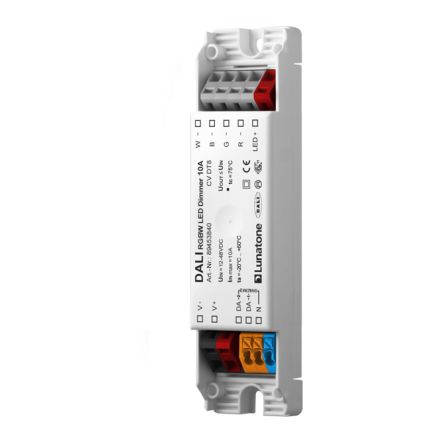

![CDATA[DALI LED dimmer (CV) with 4 output channels for controlling RGB or RGBW lights via a DALI address (DT8). As an alternative to DT8 control, the device supports the operating modes: Colour&Dim and SwitchDim2 (control option via 2 button inputs without DALI). Input voltage from 12V to 48V DC, max. connection current up to 16A, 4 PWM outputs (16 bit). Product features - RGBW color control via a DALI address - For controlling constant voltage LED modules - Dimming range from 0.1-100% - Switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) - Configuration via PC software DALI Cockpit and DALI USB interface Technical data Input voltage: 12-48VDC Max. connection current: 16A Control input: DALI DT8 / SwitchDim2 (mains voltage) Number of DALI addresses: DT8: 1, Colour&Dim: 2 Max. cable cross-section: 2.5 mm² / DALI&SwD: 1.5 mm² Variant: ceiling installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions (LxWxH): 120 x 30 x 22 mm]]>
