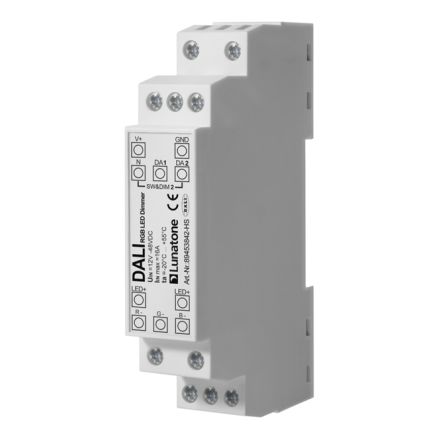

![CDATA[DALI LED driver (CV) with 3 output channels for controlling RGB lights via a DALI address (DT8). As an alternative to DT8 control, the device supports the operating modes: Colour&Dim and SwitchDim2 (control option via 2 button inputs without DALI). Input voltage from 12V to 48V DC, connection current up to 16A, 3 PWM outputs (16 bit). Technical data: Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Connection wire cross-section: 2.5mm² Installation: DIN rail Expected service life: >, 100000h Function: Device type: DALI LED driver Status after mains return: configurable via DALI: 0-100% or last value DeviceType: DT8 configurable via DALI Cockpit: yes Electrical data: Supply: 12 - 48V DC Control input: DALI, SwitchDim2 (mains voltage) Typical current requirement: 2mA (DALI) Number of DALI addresses: - Operating mode DT8: 1 - Colour&Dim: 2 Max. connection current Iinmax: 16A Dimensions in mm (LxWxH): 98 x 17.5 x 56 (1TE) Colour: grey]]>
