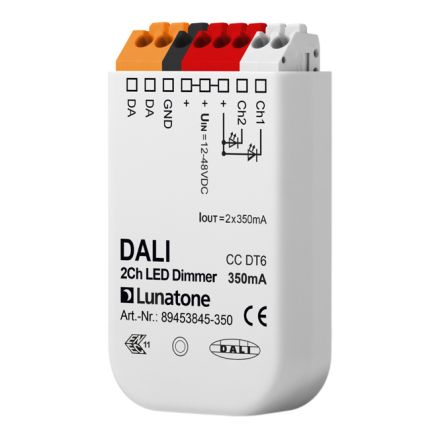

LUNATONE 89453844-350 DALI LED dimming actuator CC DT6 UP | 1-fold, 350 mA

![CDATA[DALI 1 channel CC LED dimmer LED ballast (CC) with one channel. Output controllable via DALI or SwitchDim. Input voltage from 12V to 48V DC, versions with output current of 350mA and 700mA available (other output currents on request). Product features - 1 channel CC LED dimmer - Constant output current 350 mA or 700 mA - Control via DALI or a conventional button (switch dim function) - The output can be dimmed from 1% to 100% - Supply voltage 12V to 48V DC - Configuration via DALI cockpit software tool and DALI USB interface Technical data Supply: 12VDC-48VDC Control input: DALI Temperature: -15 degrees C - 50 degrees C Protection class: IP20 Status after mains return: depends on DALI setting Max. cable cross-section: 2.5 mm² Dimensions (L x W x H): 59 mm x 33 mm x 15 mm]]>
