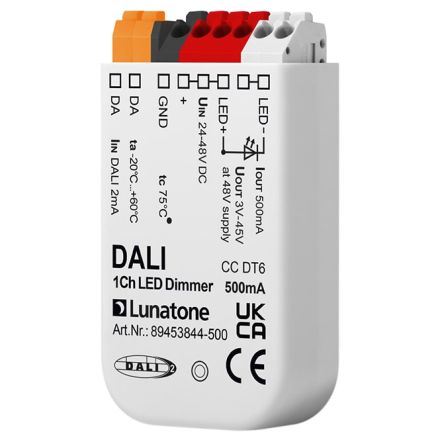

![CDATA[LUNATONE 89453844-500 DALI 1-channel CC LED dimmer is suitable for constant current LED modules. With SwitchDim2 for brightness control and scene switching. Dimming range: 0.1%-100%, PWM frequency switchable (122Hz/244Hz/488Hz/976Hz). Supply voltage: 12V to 48V DC, output voltage up to 45VDC, short-circuit protection integrated. Low standby losses, high efficiency. Configuration via DALICockpit PC software and DALI USB interface. Electrical data: Uin: 12VDC-48VDC, Iinmax: 500mA, Iled: 500mA, Uled: 3V-45V. Standby losses (12V): 180mW. Technical data: Operating temperature: -20°C to +60°C, protection class: IP20, max. cable cross-section: up to 1.5 mm². Dimensions (LxWxH): 59mm x 33mm x 15mm.]]>
