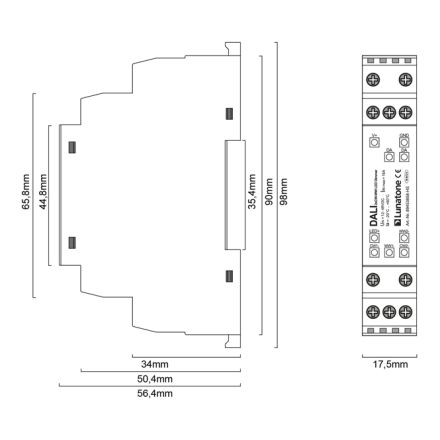

![CDATA[The LUNATONE 89453858-HS DALI DT8 2xCW-WWPWM LED Dimmer CV enables the independent control of brightness and color temperature for two Tunable White capable lighting groups via two DALI addresses. With an input voltage of 12-48V DC and a maximum connection current of 16A, it is suitable for controlling constant voltage LED modules. The dimmer offers a dimming range of 1-100% and a PWM frequency of 488Hz. It is suitable for DIN rail mounting and can be configured using the DALI Cockpit PC software and a DALI USB interface. Technical data: Input voltage: 12-48VDC, Max. connection current: 16A, Control input: DALI DT8, Number of DALI addresses: DT8: 2, Max. cable cross-section: 2.5 mm², Ambient temperature: -20 to +60 degrees Celsius, Protection class: IP20, Dimensions (LxWxH): 98 x 17.5 x 56 mm.]]>
