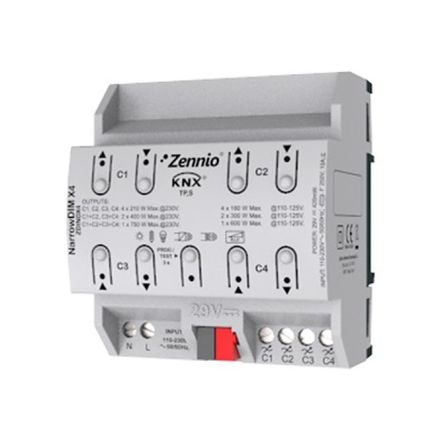

![CDATA[Dimming actuator has 4 channels for up to 210 W at 230 VAC (160 W at 110 VAC). It enables the bundling of channels, two channels each for up to 400 W at 230 VAC (300 W at 110 VAC) and four channels for up to 750W at 230 VAC (600 at 110 VAC). Automatic detection of the load type (RLC), configurable dimming curves for LED and CFL. Error detection: short circuit, overvoltage, overheating, abnormal frequency, supply voltage failure, idle, parameterization error - manual operation of the outputs via housing button - logic module with 10 logical functions integrated - automatic frequency detection - optional manual dimming control - complete data storage in the event of a KNX bus failure Important note: This product can only be configured with ETS5! Technical specifications: Voltage: 29 VDC SELV Protection type: IP20 Protection class: II Dimensions (W x H x D): 67 x 90 x 79 mm Mounting: DIN rail 4.5 HP For further technical data, please refer to the manufacturer's data sheet under Documentation.]]>
