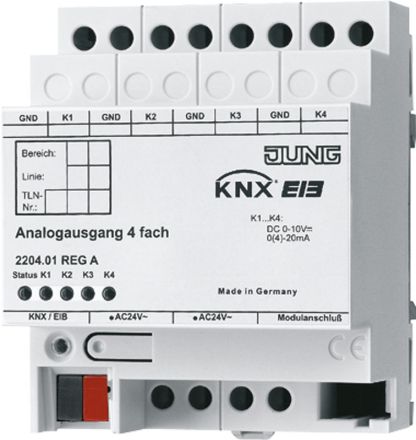

![CDATA[REG housing 4 TE ETS product family Output Product type Analog output 4-way The analog output requires the power supply to operate Item no.: WSSV 10. Function The KNX analog output has 4 analog outputs and converts KNX telegrams (1-byte and 2-byte) into analog output signals. These analog output signals enable actuators in heating, air conditioning and ventilation technology to adapt their output variables based on bus information and to participate in control processes. The outputs are parameterized by the software to voltage and current signals. Voltage signals: 0 ... 1 V, 0 ... 10 V Current signals: 0 ... 20 mA, 4 ... 20 mA Voltage outputs are monitored for short circuits. The output state is displayed by status LEDs. Using the 4-way analog output module (item no. 2204.01 REGAM), the number of analog outputs can be increased from 4 to 8. The connection is made via a system connector. The output variables can be forced.]]>
