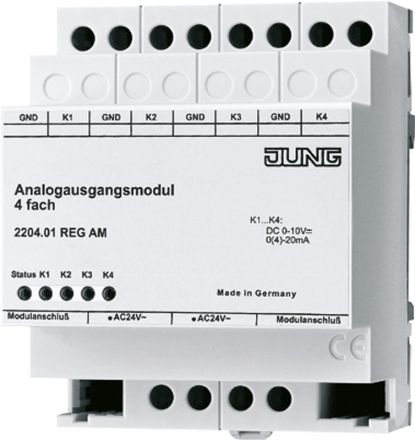

![CDATA[REG housing 4 TE extension module for 4-way analog output Item no.: 2204.01 REGA Function The analog output module extends a 4-way KNX analog output by four analog outputs that can be parameterized using software. Received data is converted into the output signals 0 ... 1 V, 0 ... 10 V, 0 ... 20 mA or 4 ... 20 mA. These analog output signals enable actuators in heating, air conditioning and ventilation technology to adapt their output variables based on bus information and to participate in control processes. The output variables can be forced. The evaluation of the module data itself and the processing of the forced control takes place in the KNX analog output. The analog output module is connected to the KNX device using a system plug included in the scope of delivery. Outputs that are not required can be switched off. Voltage outputs are monitored for short circuits. The output status is displayed by status LEDs.]]>
