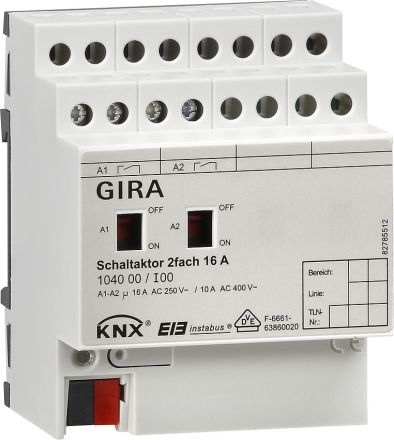

GIRA 104000 KNX switching actuator with manual operation 16 A | 2-way

Основной: Pre-order only
SKU: 20022514
€148.50
Under the orderIn the basketGo

Overview

![CDATA[2-way 16 A switching actuator with manual operation for KNX REG plus REG switching actuators with integrated bus connection. For switching independently controllable load groups. With manual switch for switching the relay (on off) in parallel or without KNX operation. Multi-phase connection. No additional power supply required. Features: Manual operation of the relays independent of the bus or the switch position indicator. Normally open or normally closed operation. Central switching function. Collective feedback to reduce the bus load. Active or passive (object can be read out) cyclical feedback function. Feedback can be delayed after bus voltage returns. Logical linking function for each output. Locking function can be parameterized for each channel. Alternatively, forced position function for each output. Time functions (switch-on or switch-off delay, staircase light function - also with advance warning function). Inclusion in light scenes possible, max. eight internal scenes per channel can be parameterized.]]>

Characteristics

Compatible with Google AssistantN/A
ThreadNo
Other bus systems-
Operation via BluetoothNo
EAN4010337058359
Siemens LOGO!No
Hager KNXeasyNo
KNX-SecureNo
MbusNo
Modbus TCPNo
Samsung SmartThingsN/A
Size of connection terminal in mm24.00
Wi-FiNo
ZigbeeNo
Fan coilNo
inputs for potential-free contactsNo
LouvreNo
Nominal voltage outputs230 V AC
SwitchingYes
With NetatmoNo
Amazon AlexaN/A
BAB-TecNo
DALI Device Type-
Gira OneNo
HeatingNo
JUNG HOMENo
KNX-RFNo
KNX-TPYes
MatterNo
ModbusNo
On-site/manual operationYes
ShellyNo
Theben LUXORlivingNo
Wiser HomeNo
Division units4
Manufacturer type104,000
Transmission typeCable
Apple HomeKitN/A
Bistable relaysYes
CasambiNo
DALI standard-
ENOceanNo
KNX USB interfaceYes
Max. switching current in A16.00
Modbus RTUNo
DALINo
Classswitching actuators
Binary inputs integratedno
Current measurementNo
DimmingNo
Free@homeNo
HAN104,000
ManufacturerGIRA
GTIN4010337058359
Number of outputs2
Mounting typeseries installation
Suitable for C-loadNo
