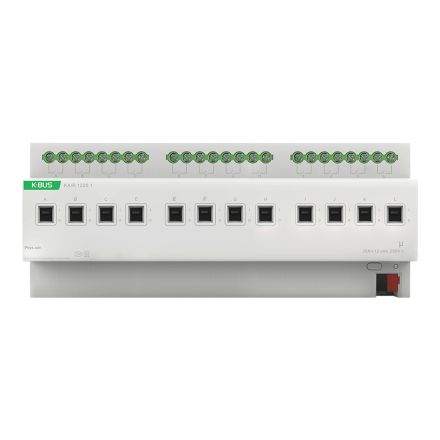

GVS 88188667 KNX switching actuator | 12-way, 20A, with manual operation

![CDATA[The GVS C load switching actuator 12-way with manual operation can also be used as a heating actuator. 12 independently controllable loads can be switched. The integrated manual operation enables switching even without KNX operation and when the actuators are not programmed. The REG actuators can be mounted multi-phase on a DIN rail. The ETS (from version 3.0d) is required for project planning and commissioning. Functions: - Manual operation - Time functions, switch-on/switch-off delay - Staircase light function with advance warning and adjustable lighting duration - Calling up scenes/presets: 1-bit/8-bit - Logical links: AND, OR, XOR, gate function - Status feedback - Forced operation and safety function - Reaction to threshold values - Control of electrothermal valve actuators - Definition of switching positions in the event of bus voltage failure and recovery Technical data: - Power supply: 21~30 V via the bus - Operating load]]>
