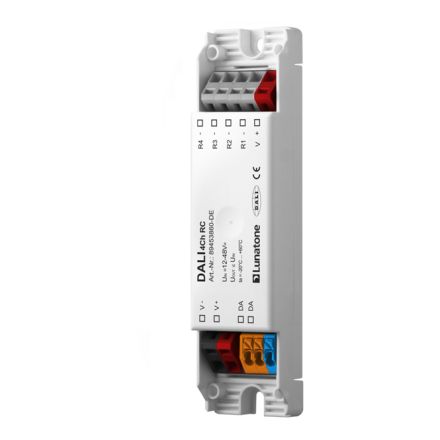

![CDATA[DALI 4Ch RC Control Gear Overview - 4 channel relay controller - For connecting switched loads to a DALI system - Suitable for relays/contactors with coil voltages from 12V to 48V DC - Each channel has its own DALI address (Device Type 7) - Configuration via DALI Cockpit software tool and DALI USB interface - 2 housing variants - Maximum connection current 8A - maximum output current per channel 2A Specification, characteristics Electrical data Supply: 12VDC-48VDC (= relay control voltage) Maximum connection current: 8A max. current per channel: 2A Control input: DALI Number of DALI addresses: 4 Typical current consumption DALI: 2mA Status after mains return: programmable Mechanical data Dimensions: 120mm x 30mm x 21mm Housing type: Ceiling-mounted Cross-section of connecting wire: 2.5mm² Ambient temperature range: -20 degrees Celsius...+60 degrees Celsius Protection class: IP20 For further information please refer to the data sheet.]]>
