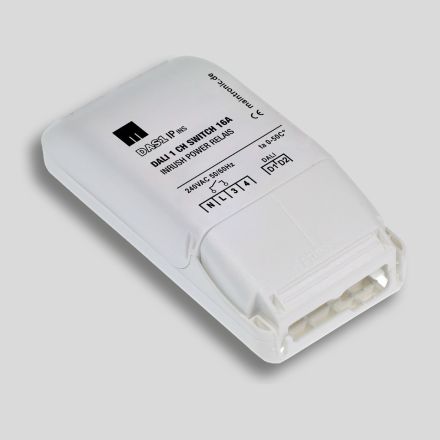

![CDATA[The DALI switching actuators enable the control of various consumers such as conventional lights with ballasts (HIT/HQI), electronic or conventional transformers, high or low voltage halogen lights and other electrical devices. The DAS1IP INS switching module in the installation housing offers 1 normally open contact with a peak current load of 165A for DALI technology. Technical data: Nominal voltage 220-240V AC, fuse up to max. 16A, switching capacity up to 3680 watts, standby/operating power of 0.22W / 0.45W, maximum inrush currents of 800A/200µs or 165A/20ms, maximum continuously transferable power of 16A. Service life of 30,000 switching cycles. Housing made of plastic, white, protection class IP20 according to DIN EN 60529, protection class II. Dimensions: 29.5 mm x 51 mm x 101.5 mm.]]>
