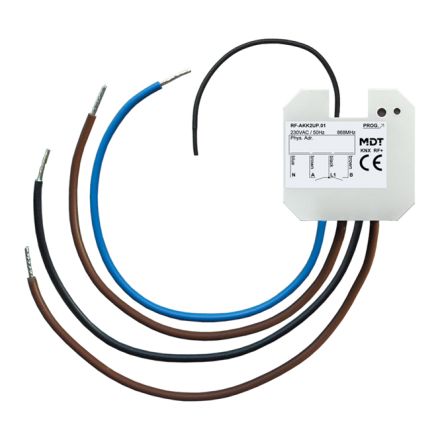

![CDATA[KNX RF+ radio switching actuator 2-way, flush-mounted, 10 A, 230 V AC. For installation in the switch box. Version with monostable relay current max. 10 A with resistive load, 10 A with 14 µF / 2 EVG. For operation within the EU, 868 MHz. New KNX RF+ protocol in system mode. Commissioning from ETS5. Normally open and normally closed operation. Time functions (switch-on/switch-off delay, staircase light function). Feedback function (active/passive) for all channels. Logical links. 8 scenes per channel. Central functions and blocking objects for forced operation. Adjustable behavior in the event of bus voltage failure/return. Installation in the switch box. Connection via MDT KNX RF+ radio line coupler. For modernization without laying bus cables. Power supply 230 V AC. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. 3-year product guarantee.]]>
