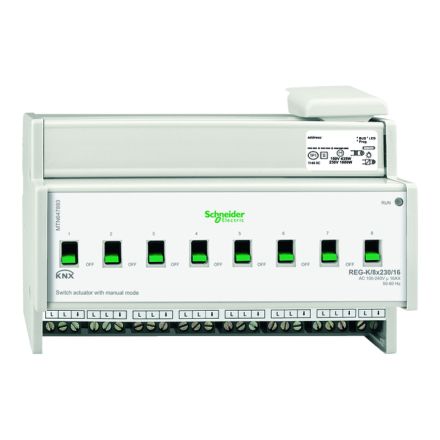

![CDATA[Schneider Electric KNX. For independent switching of 8 consumers via normally open contacts. All 230 V switching outputs can be operated manually with hand switches. With integrated bus coupler. The mains connection is made via screw terminals, with two of the L connections bridged internally. A green LED indicates that the application is ready for operation after loading. For mounting on TH35 top hat rails in accordance with EN 60715. The bus connection is made via a bus connection terminal, a data rail is not required. Nominal voltage: AC 230 V, 50-60 Hz. Per switching contact:. Switching current: 16 A, cos Phi 0.6 AC1 operation: max 16 A AC3 operation: max 10 A AC5 operation: max 16 A Max direct current: 16 A/ 24V DC. Life expectancy of output: mechanical: 106 AC1/AC3/AC5 operation: 3x104. 230V, 1A ohmic: 8x105. Incandescent lamps: AC 230 V, max. 3600 W. Halogen lamps: AC 230 V, max 2500 W. Fluorescent lamps: AC 230 V, max 2500 VA.]]>
