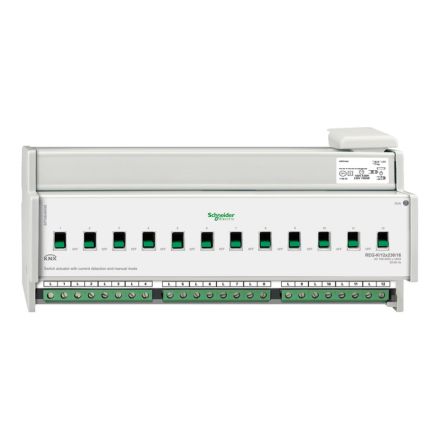

![CDATA[Schneider Electric KNX. For independent switching of 12 consumers via normally open contacts. The actuator has an integrated current detection that measures the load current per channel. All 230 V switching outputs can be operated manually using hand switches. With integrated bus coupler. A green LED indicates that the device is ready for operation after the application has been loaded. The load is connected via screw terminals. For mounting on TH35 top hat rails in accordance with EN 60715. The bus is connected via a bus connection terminal. Nominal voltage: AC 230 V, 50-60 Hz. DC 12-24 V +/-10%, 0.1-16 A. Per switching contact: switching current: 16 A, cos Phi 0.6. Detection accuracy: +/- 8% of the current current value (sine) and +/- 100 mA. Frequency: 50/60 Hz for alternating voltage. Display: 100 mA, device width: 12 HP corresponds to approx. 216 mm, scope of delivery: with bus connection terminal and cable cover.]]>
