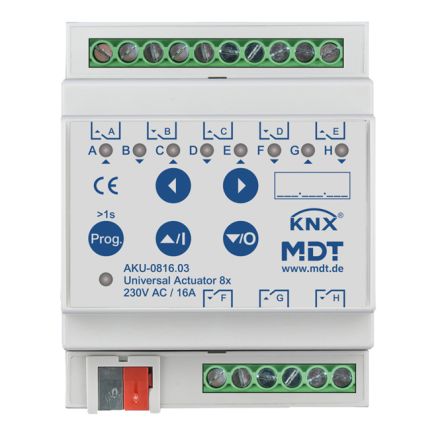

![CDATA[KNX universal actuator 8-way, 4TE, REG, 16 A, 230 V AC, 100 µF, 15 EVG. Compact design with bistable relay current max. 16 A with resistive load, 100 µF / 15 EVG With sun position calculation / shading. Can be used as a switching actuator (max. 8-way) or blind actuator (max. 4-way). Any hybrid form of switching and blind actuator. Heating control with PWM 0-100%. Button for manual operation and LED display for each channel. Practical ventilation function (window open/tilted). Automatic shading/slat tracking with sun position calculation. Time functions (switch on/off delay, staircase light function). Feedback function (active/passive) for all channels. Logical links, 8 scenes per channel. Central functions and blocking objects for forced operation. Adjustable blind/roller shutter operating mode. Freely adjustable running, pause and step times. Adjustable behavior in the event of bus voltage failure/return. 4 mm² / 2x2.5 mm² connection terminals. All L connections separated.]]>
