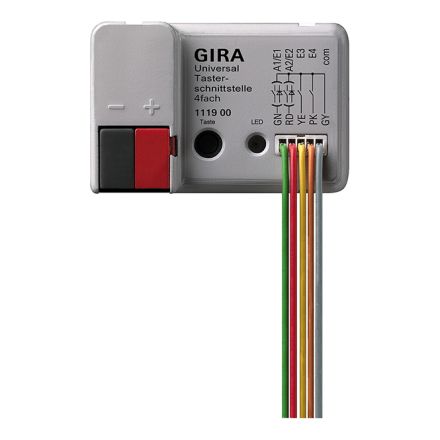

![CDATA[Universal button interface 4-way for KNX flush-mounted binary inputs, can be used in a deep device box (60 mm deep) behind a conventional switch button, for connecting potential-free contacts. The switching operations of potential-free contacts are converted into KNX telegrams. The inputs can be assigned to different functions or blocked independently of one another. The inputs can be parameterized as outputs (max. 2 mA). Features: Blocking object for blocking individual inputs. Behavior when bus voltage returns can be parameterized separately for each input. Telegram rate limitation. Two independent switching objects are available for each input and can be activated individually, command can be set independently for rising and falling edges (ON, OFF, TOGGLE, no reaction), cyclical sending of the switching objects can be selected depending on the edge or depending on the object value.]]>
