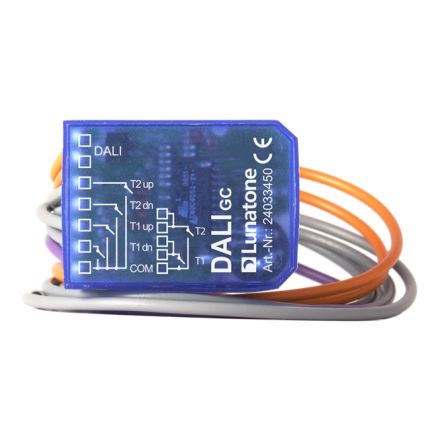

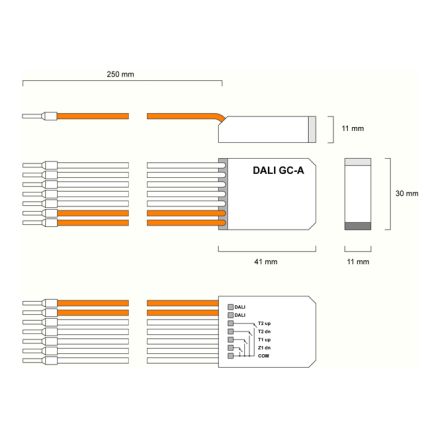

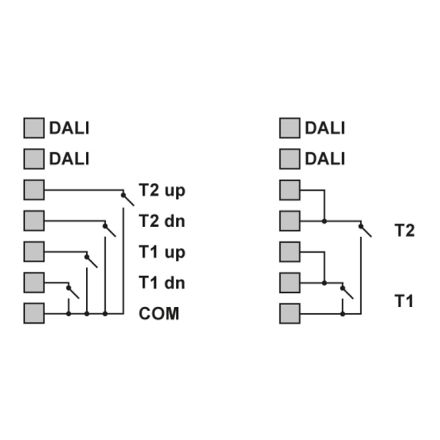

The DALI group control module enables the control of two DALI groups with conventional light switches. The groups to be controlled can be selected using a rotary switch on the module. It supports the addressing and grouping of lights. The compact module is installed in flush-mounted boxes behind the switches and is powered via the DALI bus. It does not require a separate power supply and can be connected to standard buttons. Technical data: Supply via DALI bus, current consumption 6 mA, 2 button inputs, DALI output for broadcast, 2 groups of 16 selectable, temperature range 0°C to 50°C, protection class IP20, connection wires 0.75 mm², connection length 250 mm.
