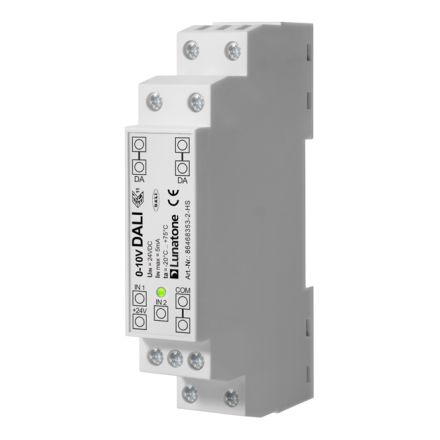

![CDATA[The interface module converts 0-10V control signals into DALI dimming levels. Available with 1, 2 or 3 channels, it sends the 0-10V voltage as DALI Off or dimming value to the desired area in the DALI circuit. By configuring via the DALI cockpit and USB interface, the effective range, conversion characteristics and OFF function can be set for each channel. Requires a DALI bus supply and offers galvanic isolation. Electrical data: Supply: 12V - 24V DC, Input: 2 x 0-10V, Output: DALI, Working temperature: -20°C to 60°C, Dimensions: 1TE, 98mm x 56mm x 18mm, Mounting: DIN rail, Protection class: IP20, Cross-section of connecting wires: up to 2.5mm².]]>
