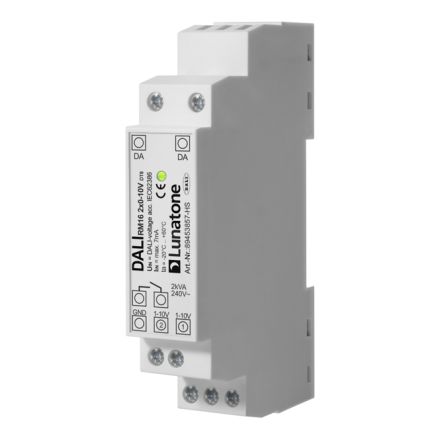

LUNATONE 89453857-HS DALI-1-10V interface DT8 REG | 2-way, 16 A

![CDATA[The product controls electronic ballasts with 1-10V control inputs for brightness and color temperature. It includes switching relays for switching the ECG power supply on/off and offers automatic calibration for the output signals. The module can assign DALI DT8 addresses and offers different output modes for brightness/Tc or separate channels for CW and WW. It converts DALI commands into analog 1-10V output signals, with 1mA per channel. The relay has a switching voltage of 250V/400V, rated load of 2000VA and maximum switching current peaks of 160A. It is galvanically isolated from DALI input and 1-10V outputs. Further specifications can be found in the manufacturer's data sheet.]]>
