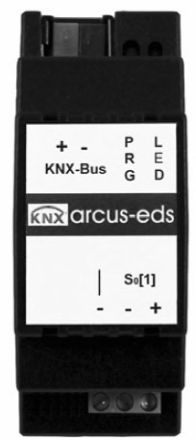

![CDATA[Consists of a counting module with battery-buffered data storage and KNX bus coupler for remote reading and monitoring of consumption measurement data. The counting input is specified with the S0 interface in accordance with DIN EN 62053-31, but can also be connected to a potential-free contact. Two scales with separate meter readings can be parameterized. The KNX sensors are commissioned using the ETS (EIB Tool Software) in conjunction with the associated application program. The devices are unprogrammed when delivered. All functions are parameterized and programmed using the ETS. Functions - Meter reading (scale 1/2) - Flow rate - Sample value (scale 1/2) - Consumption value (scale 1/2) - Serial number - Scale switching - Limit alarm (scale 1/2) - Date and time - Last sample date - Next sample date - Consumption value reset - Reset time - Reset date Technical data Housing material: Plastic Dimensions: 2 TE (35 mm) Protection class: IP20]]>
