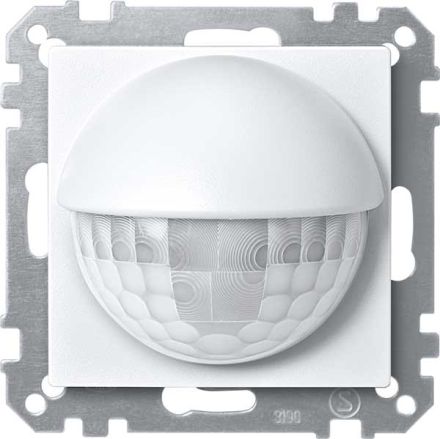

KNX ARGUS 180/2.20 m flush-mounted. For System M. Motion detector for indoor areas with anti-creep protection. When movement is detected, a data telegram determined by the programming is sent. With integrated bus coupler. For wall mounting in a size 60 installation box, optimal installation at a height of 2.2 m. KNX software functions: Five motion blocks: Up to four functions can be triggered per block. Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, safety pause, deactivation function. Sensitivity, brightness and staircase lighting time can be set using the ETS or the potentiometer. Two motion sensors: Sensitivity and range can be set separately for each sensor. Self-adjusting staircase lighting time. Detection angle: 180°. Range: 8 m right/left, 12 m forwards (at a mounting height of 2.20 m). Mounting height: 2.2 m or 1.1 m at half the range. Number of levels: 6. Number of zones: 46.
