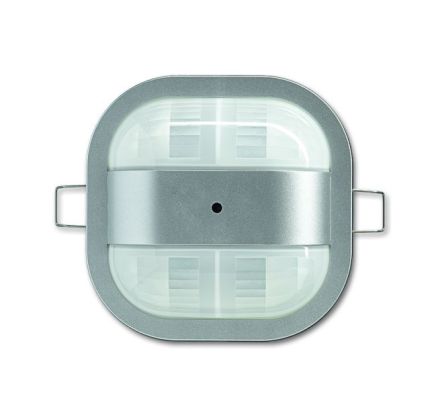

BUSCH-JAEGER 6819/59-183 DALI presence detector | 30 m, Corridor, Slave | aluminum silver

DALI slave presence detector to extend the detection range of DALI master presence detectors. For the operating voltage supply via the DALI master. Current consumption on the DALI bus: max. 10 mA, corresponds to approx. 5 DALI operating devices. Communication with the DALI master takes place via the DALI interface. Detection range (at a mounting height of 3 m): rectangular Walking people: across the detector 24 mx 3 m, frontal/lengthwise to the detector 14 mx 3 m. Installation height 27 mm. Ceiling installation via integrated spring clip. Anti-twist protection via additional quick clamping. Monitoring density: 92 sectors with 368 switching segments. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Installation hole size: Ø 68 mm. Recommendation: HaloX® 100 from Kaiser (Art. No. 1281-00) with appropriate cover (1281-01 or 1281-61 for exposed concrete) or IBTronic H120-68 from Spelsberg
