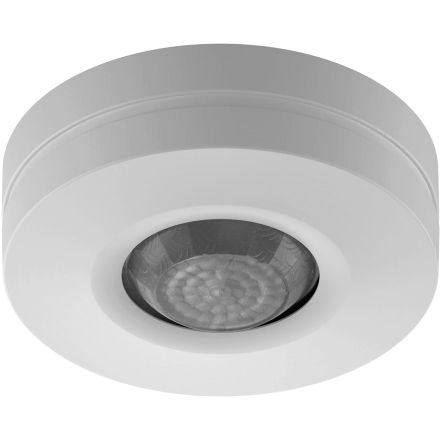

Detectorline DT202012 KNX presence detector DT-KNX-360i | with acoustic sensor | white

Основной: Pre-order only
SKU: 20004144
€107.10
Under the orderIn the basketGo

Overview

![CDATA[All-in-one sensor, made in Germany, for contactless and hygienic control of lighting based on presence. With additional acoustic sensor for extended area coverage. 4-way mounting options: flush-mounted, surface-mounted, ceiling-mounted and flush-mounted. Universally applicable with extensive ETS parameterization options. KNX bus system. Recommended mounting height: 2.80m. Detection range: 360 degrees, range: 10m. Operating voltage: 29-31 VDC (KNX). Power consumption: 0.2W. Brightness value: 0-2000 lux [+day mode]. Follow-up time: 1 sec. to 18h. Operating mode: fully or semi-automatic. Button input via KNX/EIB button. Protection class: IP20. Dimensions: Ø 84mm, H: 30mm. Area of application: indoors. Operating temperature: 0 to +50 degrees Celsius. Housing color: white [RAL 9016]. Lens color: Opal. Housing made of UV-stabilized polycarbonate.]]>

Characteristics

Surfacefrosted
Materialplastic
Compatible with Google AssistantN/A
ThreadNo
Other bus systems-
Operation via BluetoothNo
EAN4260731942123
Siemens LOGO!No
Hager KNXeasyNo
Is expansionNo
KNX-SecureNo
Lateral reach in m10.00
MbusNo
Modbus TCPNo
Samsung SmartThingsN/A
Wi-FiNo
ZigbeeNo
Brightness sensorYes
Protection class \(IP\)IP20
With NetatmoNo
Amazon AlexaN/A
BAB-TecNo
CO2 sensorNo
Gira OneNo
JUNG HOMENo
KNX-RFNo
KNX-TPYes
MatterNo
ModbusNo
ShellyNo
Theben LUXORlivingNo
Wiser HomeNo
Air pressure sensorNo
Creep protectionYes
Detection angle in °360
Fits in 55 switch programNo
Humidity sensorNo
Installation height in m2.80
Manufacturer typeDT-KNX-360i-10-MIC where
Number of areas1
Transmission typeCable
Apple HomeKitN/A
CasambiNo
ENOceanNo
KNX USB interfaceYes
LED night lightNo
Modbus RTUNo
VOC sensorNo
Frontal range in m10.00
DALINo
Classpresence detectors
Detection type/sensor typepassive infrared
Acoustic sensorYes
Detection rangecircular
Free@homeNo
installation locationCeiling
integrated constant light controlNo
Suitable for installation in switch programNo
Temperature sensorYes
HANDT202012
ManufacturerCNS
ColorWhite
GTIN4260731942123
Mounting typeflush-mounted
Dimming DALI-2No
Area of applicationinside
Remote controlNo
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Supply voltageN/A
AccesoriesNo
