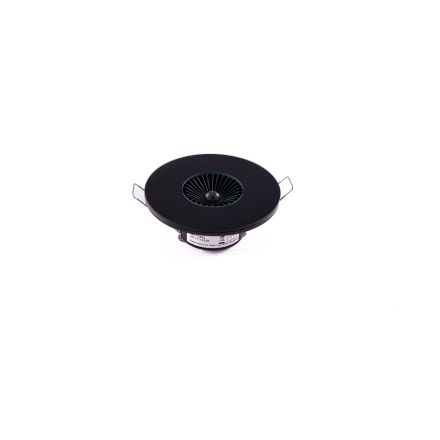

![CDATA[The sensor offers brightness measurement and control, motion detection and adjustable limit values. It has 4 AND and 4 OR logic gates, temperature and humidity measurement with dew point calculation, and PI controller for heating and ventilation. Technical data: Housing made of plastic and glass, IP30, Ø approx. 80 mm, installation depth approx. 5 mm, installation depth approx. 31 mm. Operating temperature: -20°C to +60°C, storage: -20°C to +70°C. Operating voltage: KNX bus voltage, max. 10 mA bus current. Data output via KNX +/- bus plug terminal. Maximum of 254 group addresses and assignments, 252 communication objects. Brightness sensor: measuring range 0 lux - 2,000 lux, motion sensor with detection angle approx. 94 × 82 degrees and range approx. 5 m. Temperature sensor: -20°C to +60°C, humidity sensor: 0% rH to 100% rH. Included in delivery: sensor, pre-assembled clamps for hollow ceiling installation, support ring for box installation, data sheet and manual in several languages as download.]]>
