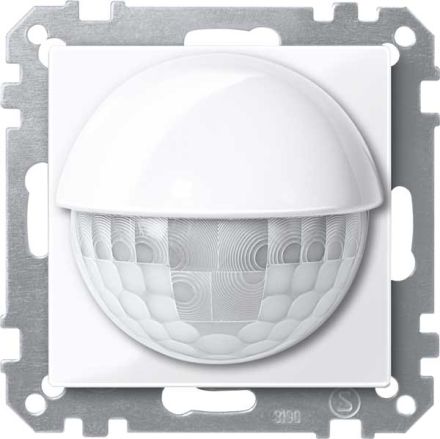

MERTEN 630425 KNX presence detector UP System M | 2.2 m | active white glossy

Основной: Pre-order only
SKU: 20034103
€112.82
Under the orderIn the basketGo

Overview

![CDATA[For System M. Presence detection indoors. If the KNX ARGUS Presence detects small movements in the room, data telegrams are sent via KNX to control lighting, blinds or heating at the same time, for example. With brightness-dependent motion detection for lighting control, the device constantly checks the brightness in the room. If there is sufficient natural light, the device switches off the artificial light even if a person is present. The run-on time can be set via the ETS. With integrated bus coupler. For wall mounting in a 60 mm installation box, optimal use at 2.2 m. With creep-under protection. KNX software functions Five motion/presence blocks Up to four functions can be triggered per block. Telegrams 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, monitoring, safety pause, blocking function. Two motion sensors Sensitivity and range can be set separately for each sensor. Learnable staircase light time.]]>

Characteristics

Surfaceglittering
Materialplastic
Compatible with Google AssistantN/A
ThreadNo
Other bus systems-
Operation via BluetoothNo
EAN4042811073800
Siemens LOGO!No
Hager KNXeasyNo
Is expansionNo
KNX-SecureNo
Lateral reach in m8.00
MbusNo
Modbus TCPNo
Samsung SmartThingsN/A
Wi-FiNo
ZigbeeNo
Brightness sensorYes
Protection class \(IP\)IP20
With NetatmoNo
Amazon AlexaN/A
BAB-TecNo
CO2 sensorNo
Gira OneNo
JUNG HOMENo
KNX-RFNo
KNX-TPYes
MatterNo
ModbusNo
ShellyNo
Theben LUXORlivingNo
Wiser HomeNo
Air pressure sensorNo
Creep protectionYes
Detection angle in °180
Fits in 55 switch programYes
Humidity sensorNo
Installation height in m2.20
Manufacturer type630425
Transmission typeCable
Apple HomeKitN/A
CasambiNo
ENOceanNo
KNX USB interfaceYes
LED night lightNo
Modbus RTUNo
VOC sensorNo
Frontal range in m12.00
DALINo
Classpresence detectors
Detection type/sensor typepassive infrared
Acoustic sensorNo
Detection rangecircular
Free@homeNo
installation locationWall
integrated constant light controlNo
Suitable for installation in switch programYes
Temperature sensorNo
HAN630425
ManufacturerMERTEN
ColorWhite
GTIN4042811073800
Mounting typeflush-mounted
Dimming DALI-2No
Area of applicationinside
Remote controlYes
Suitable for ceiling mountingNo
Suitable for wall mountingYes
Supply voltageN/A
AccesoriesNo
