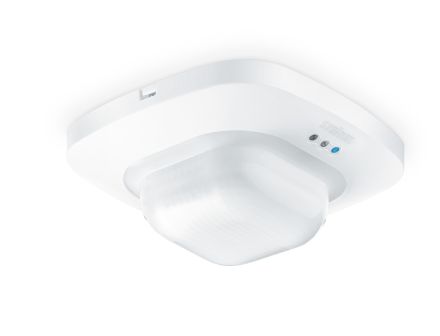

![CDATA[Presence detector passive IR UP IR Quattro KNX Bus system KNX, Other bus systems without, Presence detector design, Mounting type other, Material plastic, Material quality thermoplastic, Surface protection other, Surface finish matt, Color white, RAL number (similar) 9010, With bus connection, Extension input, Creep under protection/rear field monitoring, Operating mode switch, Adjustable response brightness, Teach function for response brightness, Self-learning switch-off delay, Optimal mounting height 2.8m, Max. range to one side 3.5m, Max. range frontally 3.5m, Detection field diameter on floor 5m, Vertical detection angle 100 ... 100°, Horizontal detection angle 360 ... 360°, Number of digital inputs 0, Number of channels 4, Min. duty cycle 10s, Max. duty cycle 1092min, Min. depth of device box 66mm,]]>
