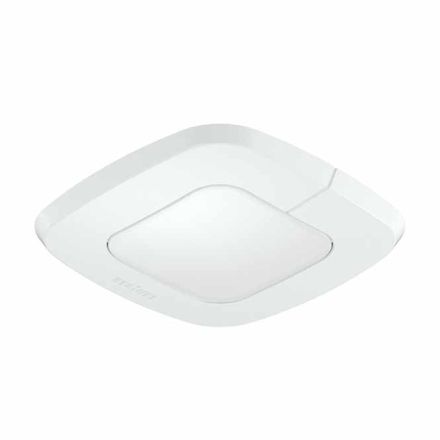

![CDATA[Presence detector passive IR UP IR Quattro S #058500 Bus system KNX, Other bus systems without, Presence detector design, Mounting type other, Material plastic, Material quality thermoplastic, Surface protection other, Surface finish matt, Color white, RAL number (similar) 9010, With bus connection, Creep under protection/rear field monitoring, Operating mode switch, Teach function for response brightness, Self-learning switch-off delay, Optimal mounting height 2.8m, Max. range to one side 2m, Max. range frontally 2m, Detection field diameter on floor 4m, Vertical detection angle 71 ... 71°, Horizontal detection angle 360 ... 360°, Number of digital inputs 0, Number of channels 4, Min. duty cycle 60s, Max. duty cycle 255min, Min. depth of device box 66mm,]]>
