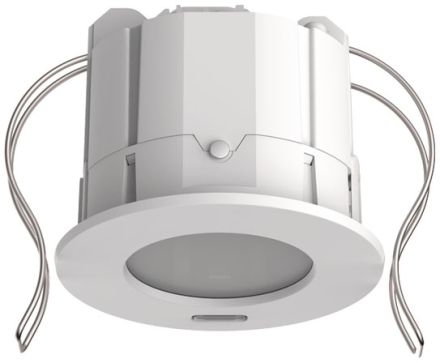

THEBEN PlanoSpot 360 KNX DE WH KNX presence detector | white

Основной: Pre-order only
SKU: 20011135
€88.05
Under the orderIn the basketGo

Overview

![CDATA[Presence detector for ceiling mounting PlanoSpot360KNXDE WH KNX bus system, presence detector design, flush-mounted installation, plastic material, thermoplastic material grade, untreated surface protection, matt surface finish, white colour, RAL number (similar) 9010, with bus connection, extension input, staircase monitoring, adjustable response brightness, teach function for response brightness, self-learning switch-off delay, optimum installation height 3m, max. range to one side 4m, max. frontal range 4m, detection field diameter on floor 8m, horizontal detection angle 0 ... 360°, number of digital inputs 0, number of channels 5, min. switch-on time 30s, max. switch-on time 60min,]]>

Characteristics

Surfacefrosted
Materialplastic
Compatible with Google AssistantN/A
ThreadNo
Other bus systems-
Operation via BluetoothNo
EAN7612748005839
Siemens LOGO!No
Hager KNXeasyNo
Is expansionNo
KNX-SecureNo
Lateral reach in m4.00
MbusNo
Modbus TCPNo
Samsung SmartThingsN/A
Wi-FiNo
ZigbeeNo
Brightness sensorYes
Protection class \(IP\)IP20
With NetatmoNo
Amazon AlexaN/A
BAB-TecNo
CO2 sensorNo
Gira OneNo
JUNG HOMENo
KNX-RFNo
KNX-TPYes
MatterNo
ModbusNo
ShellyNo
Theben LUXORlivingNo
Wiser HomeNo
Air pressure sensorNo
Creep protectionNo
Detection angle in °360
Fits in 55 switch programNo
Humidity sensorNo
Installation height in m3.00
Manufacturer typePlanoSpot 360 KNX DE WH
Number of areas1
Transmission typeCable
Apple HomeKitN/A
CasambiNo
ENOceanNo
KNX USB interfaceYes
LED night lightNo
Modbus RTUNo
VOC sensorNo
Frontal range in m4.00
DALINo
Classpresence detectors
Detection type/sensor typepassive infrared
Acoustic sensorNo
Detection rangecircular
Free@homeNo
installation locationCeiling
integrated constant light controlYes
Suitable for installation in switch programNo
Temperature sensorNo
HAN2039100
ManufacturerTHEBEN
ColorWhite
GTIN7612748005839
Mounting typecavity wall
Dimming DALI-2No
Area of applicationinside
Remote controlYes
Suitable for ceiling mountingYes
Suitable for wall mountingNo
Supply voltageN/A
AccesoriesNo
